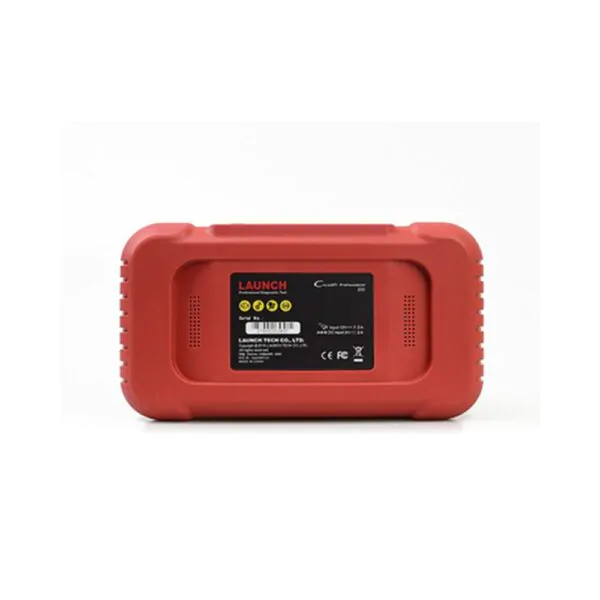

2020 Launch CRP239 Car Scanner جهاز لانش قارء الاخطاء

In Stock

د.إ1,100.00

In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
إذا كانت لديك استفسارات، فلا تترد بالتواصل معنا

+971 501 679 410 راسلنا عبر واتساب

مُماثل لما تطلبه

نرسل لك تمامًا ما تطلبه

أفضل الأسعار

احصل على الأدوات اللازمة بأفضل سعر

التواصل متاح بعد الشراء وقبله

يمكننا مساعدتك بقدر المستطاع

توصيل لكل المناطق

يصلك لأي مكان في العالم

الوصف

احدث جهاز متوسط الاستخدام من شركة لانش بميزات عصريه حيث انه يدعم التحديث بواسطة الانترنت و فيه واي فاي مع شاشة لمس عالية الجوده

يفحص اهم الانضمه بالسيارة القير و الماكينه و الايرباق و البريك الكهربائي

و يعمل اعادة ضبط لستتة اشياء مهمه هي ضبط دواسة البترول و ضبط البريك الكهربائي و الستيرنج الكهربائي و غيار الزيات و ضبط ضغط اعجلات و ضبط البطاريه

يتم التحديث بكبسة زر بدون جهد فقط اضغط تحديث و تلقائيا يحدث و لاكن يشترط ربطه بالانترنت

فيه خاصية التقارير و خاصية حفض المعلومات و انه فيه المعلومات الحيه و الرسومات

و فيه خاصية شرح الاخطاء

لطلب الجهاز الامارات – الشارقه 00971501679410

CRP 233 is a handheld intelligent and networkable auto diagnostic tool features with OBD fill function and fast-test function of four major systems including Engine, Automatic Transmission, ABS and SRS for passenger cars.

Description

100% Original Launch CRP239 Code Reader

The New Launch CRP239 is now in the Philippines. Exclusively Distributed by: Veritek Incorporated.



Launch CRP239 Functions:

    1. OBDII diagnostic full function
    2. Multiple car models (covering over 30+ Car Brands from Asia, America and Europe).
    3. Support 4 Systems: Engine, Transmission, ABS, and Airbag.
    4. Basic diagnostic functions: read DTCs, clear DTCs, and read data stream
    5. Support DTCs help, data stream wave display, history data record and replay
    6. Support Multi-languages
    7. Online upgrade, you can download the latest version anytime anywhere.

Launch CRP239 Details:

Creader Professional 239 is an evolutionary smart solution for passenger car diagnosis. It inherits from LAUNCH  CRP 129, CRP233 and CRP 129E it has advanced diagnosing technology and is characterized by covering a wide range of vehicles, featuring powerful functions, and providing precise test result.

CRP239 support all 10 modes of OBDII test for a complete diagnosis. CRP 239 also supports the system diagnosis of ABS.SRS, ENG and AT system.

Launch CRP239 Language Support:

  • English
  • Spanish,
  • French,
  • German,
  • Italian,
  • Russian,
  • Japanese,
  • Korean,
  • Portuguese



Launch CRP239 Features:

1. Smart(Auto-Detect) Diagnosis:Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

2.Manual Diagnosis:If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph

and Merged).

3.OBD II Diagnosis:10 modes of OBD II test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.

4. 5 Special Functions :Frequently used maintenance and reset items including Oil lamp reset, Electronic parking brake resetSteering angle calibration,Tire pressure monitor system reset and Electronic throttle position reset can be done.

5. One-click Update:Let you update your diagnostic software and APK online.

6. Diagnostic History:This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.

7. Diagnostic Feedback:Use this option to submit the vehicle issue to us for analysis and troubleshooting.

8. DTC Library:Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

9. Displays battery real-time voltage once properly connected to the vehicle.



10 Modes of OBD 2:

  1. Show current data
  2. Show freeze frame data
  3. Show stored Diagnostic Trouble Codes
  4. Clear Diagnostic Trouble Codes and stored values
  5. Test results, oxygen sensor monitoring (non CAN only)
  6. Test results, other component/system monitoring (Test results, oxygen sensor monitoring for CAN only)
  7. Show pending Diagnostic Trouble Codes (detected during current or last driving cycle)
  8. Control operation of on-board component/system
  9. Request vehicle information
  10. Permanent Diagnostic Trouble Codes (DTCs) (Cleared DTCs)



Launch CRP239: List of Supported Vehicles

  1. Audi
  2. Benz
  3. Bmw
  4. Chrysler
  5. Citroen
  6. Daewoo
  7. Fiat
  8. Gm
  9. Honda
  10. Hyundai
  11. Jaguar
  12. Jpisuzu
  13. Kia
  14. Landrover
  15. Mazda
  16. Mitsubishi
  17. Nissan
  18. Opel
  19. Peugeot
  20. Porsche
  21. Renault
  22. Saab
  23. Seat
  24. Skoda
  25. Smart(Smart)
  26. Sprinter
  27. Subaru
  28. Suzuki
  29. Toyota
  30. Usaford
  31. Volvo
  32. Vw

Launch CRP239 Technical Specifications:

LCD 5” 720P IPS Touch Screen
RAM 1GB
ROM 8GB
OBDII Port Input Voltage 9V-18V
DC Input Voltage 5V
Storage Temperature -20°C-10°C
Working Temperature -10°C-50°C
Dimension 228X125X34.5mm
Net Weight <565g





المراجعات

لا توجد مراجعات بعد.

كن أول من يقيم “2020 Launch CRP239 Car Scanner جهاز لانش قارء الاخطاء”

لن يتم نشر عنوان بريدك الإلكتروني. الحقول الإلزامية مشار إليها بـ *
