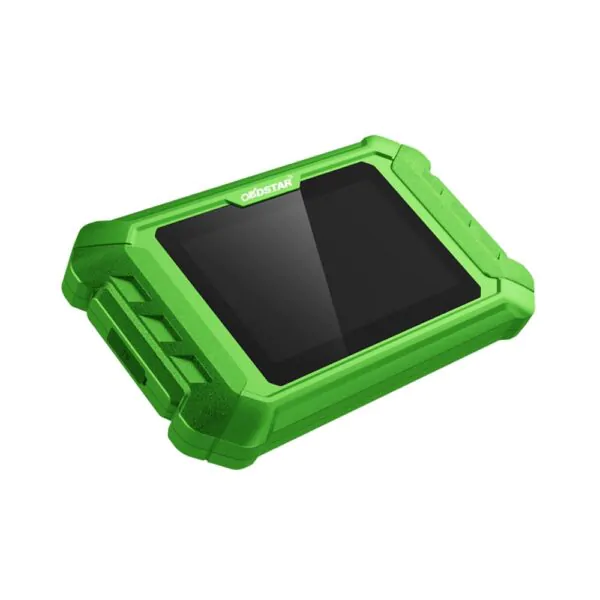

OBDSTAR Key Master 5 All-Purpose Immobilizer Programming Device
د.إ3,250.00
In Stock
Did you like this product? Add to favorites now and follow the product.
Add to Wishlist
Add to Wishlist
إذا كانت لديك استفسارات، فلا تترد بالتواصل معنا
+971 501 679 410 راسلنا عبر واتساب
الوصف
جهاز الكي ماستر 5 هو جهاز ممتاز جدا من شركة او بي ديه ستار لاصحاب ورش برامج المفاتيح
و يغطي كميه كبيره من السيارات بجميع انواها الاسيويه و الامريكيه و الاوروبيه
الامارات – الشارقه – 00971501679410
Key Master 5 is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith.
OBDSTAR Key Master 5 All-purpose Immobilizer Programming Device
Key Master 5 is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith.
The device inherits the automobile immobilizer programming technology from OBDSTAR with a lot of advantages of early start, wide vehicle coverage, fast programming speed and special features.
All-in-one machine structure, more convenient to use, full optimization hardware, running more stable, faster and smoother.
Technical Parameter
● Operation system: Android 5.1.1
● CPU: RK3128 Quad-Core ARM Cortex A7 @1.2Ghz
● Battery: 2500mA, rechargeable polymer lithium battery
● Extension memory card: 32G Micro SD (TF) card supported
● Storage capacity: 16GB
● LCD: 5.0 inch
● LCD resolution: 800*600
● Touch screen: capacitive touch screen
● Wi-Fi: supported
● Working temperature: -20℃ ~ 55℃（14℉ ~ 131℉ ）
● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ）
● Weight: about 700g
● Dimension: 140mm*89*mm*18mm (5.51in*3.5in*0.7in)

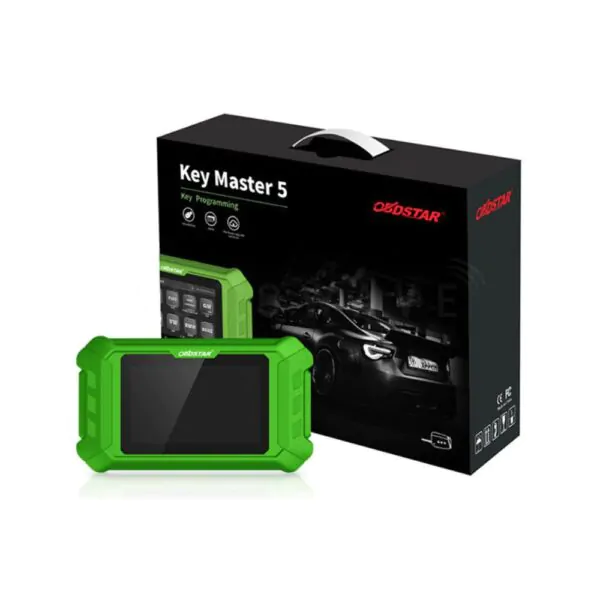

Package List
Main Unit+Main Cable+Charger+Packing Box+KIA-20+OBD II-16 Connector+HONDA-3+HYUNDAI-10+P001 Programmer Unit+C001/C002 Circuit Board+W001+Configuration List/Certificate/Quick Start Guide Fold
Weight (Kg) = 10 Kg
كن أول من يقيم “OBDSTAR Key Master 5 All-Purpose Immobilizer Programming Device”
Quick Comparison
| Settings | OBDSTAR Key Master 5 All-Purpose Immobilizer Programming Device remove | X-100 PAD Special Functions Expert remove | V5.18 CN900 Mini Transponder Key Programmer Support Multi-Language for 4C 46 4D 48 G Chips remove | X-100 Pro Auto Key Programmer & Service Reset remove | OBDSTAR ODO Master for Odometer Adjustment/Oil Reset/OBDII Functions Update Version of X300M remove | JMD OBD Adapter for Handy Baby 2 Support VW MQB Key Programming remove | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | OBDSTAR Key Master 5 All-Purpose Immobilizer Programming Device remove | X-100 PAD Special Functions Expert remove | V5.18 CN900 Mini Transponder Key Programmer Support Multi-Language for 4C 46 4D 48 G Chips remove | X-100 Pro Auto Key Programmer & Service Reset remove | OBDSTAR ODO Master for Odometer Adjustment/Oil Reset/OBDII Functions Update Version of X300M remove | JMD OBD Adapter for Handy Baby 2 Support VW MQB Key Programming remove | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Image |  |  |  |  |  |  | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| SKU | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Rating | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Price | د.إ3,250.00 | د.إ2,200.00 | د.إ800.00 | د.إ999.00 | د.إ1,400.00 | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Stock | In Stock
| In Stock
| In Stock
| In Stock
| In Stock
| In Stock
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Availability | In Stock | In Stock | In Stock | In Stock | In Stock | In Stock | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Add to cart | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Description | جهاز الاكس 100 باد هو اول جهاز لوحي بنظام اندرويد في العالم لبرمجة مفاتيح السيارات ولا يقتصر عمل هذا الجهاز على برمجة المفاتيح باحترافيه عاليه ولاكن قادرعلى ضبط كميه مهوله من البرمجه للسياره الضروري عملها في ورش اصلاح السيارات كما و قادرعلى برمجة عداد السيارة و برمجة غيار الزيت و التايمنج بلت و برمجة الانوار و برمجة ضغط العجلات و برمجة البريك الكهربائي و دواسة البترول و دبة البيئه و البطاريه و الستيرنج الكهربائي و فحص كامل للسيارة X-100 PAD is the first tablet key programmer in the world! It not only provides customers with professional key programming, but also the most needed special functions for workshop. X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis. |
| جهاز اكس 100 برو لبرمجة المفاتيح هو جهاز عملي و حجمه مناسب بحيث يكون محمولليبرمج المفاتيح للسيارات بمختلف انواعها و يعمل على تعديل عداد السيارة و يقوم بوضائف مهمه مثل برمجة دواسة البترول و البريك الكهربائي ووضائف اخرى مهمه X-100 Pro Auto Key Programmer is a hand-held device for programming keys in immobilizer units on vehicles. This scan tool has a simple and robust design, to make your vehicle service experience much easier! | وصلة الجي ام ديه المساعده لبرمجة المفاتيح و التي تعمل مع جهاز الهاندي بيبي 2 وضائف الوصله كالتالي كل الوضائف المساعده من شركة الجي ام ديه برمجة الاوبي ديه تشخيص اعطال تصحيح العداد برمجة الريموت كونترول فولكسواجن و سكودا و الاودي JMD OBD Adapter for Handy Baby 2 JMD OBD Adapter Function: 1.All JMD Assistant function 2.OBD Programming 3.Automobile diagnosis 4.Odometer correction 5.Remote control manual programming 6.VW/Skoda/Audi MQB
JMD OBD Adapter OBD Restoring Car Models List:
VW,Audi,Buick,Chevrolet,Cadillac,KIA,Hyundai,Roewe,Ssangyong,Renautl,Ford,Porsche,Nissan,Inifiniti,Land Rover,Smart,Skoda,Mazda,Great Wall
FAW Besturn,Greely,GMC,Jeep,Chrysler,Jaguar,Dodge.
JMD OBD Adapter IMMO Car Models List:
VW,Audi,Huyndai,Buick,Chevrolet,Honda,Jinbei,Brilliance Auto,Citroen,Peugeot,Nissan,KIA,DFL-FX,Toyota,FJFAW,Soueast,Chery,Mazda,Leopaard
Ford,Changan,Changhe,Geely,Hafei Automotile,JAC,Jiangling motor,Great Wall,Hawtai,Maple,Lifan,Zotye,FAW Besturn,Young Lotus,Saic Roewe
Haima,Saic MG,Chrysler,Renault,Subaru,Jarguar,Cadillac,Land Rover,Lexus,Mitsubishi,Infiniti,SsangYong,Jeep,Dodoge,BYD,Smart,Luxgen,BaoJun
Beijing Automobile,Fiat,Trumpchi,DongFeng Aeolus,Yema,FAW Jiabao,GMC,Hummer,Iveco,Maserati,Suzuki,Isuzu,DS.
JMD OBD Adapter Remote Control Manual Car Models List:
VW,Audi,Honda,Toyota,Nissan,Citroen,Suzuki,Buick,Chevrolet,Ford,Mazda,Haima,JMC,Chery,Soueast,Mitsubishi,Great Wall,Geely,Englon,JAC,BYD,FAW
Land Rover,Renault,Dodoge,Subaru,Jeep,BMW,Benz,SsangYong,Opel,Jaguar,Lincoln.
What is the Difference Between JMD OBD and JMD Assistant
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Content | جهاز الكي ماستر 5 هو جهاز ممتاز جدا من شركة او بي ديه ستار لاصحاب ورش برامج المفاتيح و يغطي كميه كبيره من السيارات بجميع انواها الاسيويه و الامريكيه و الاوروبيه الامارات - الشارقه - 00971501679410 Key Master 5 is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith. OBDSTAR Key Master 5 All-purpose Immobilizer Programming Device Key Master 5 is an all-purpose immobilizer programming device meticulously designed by OBDSTAR for locksmith. The device inherits the automobile immobilizer programming technology from OBDSTAR with a lot of advantages of early start, wide vehicle coverage, fast programming speed and special features. All-in-one machine structure, more convenient to use, full optimization hardware, running more stable, faster and smoother. Technical Parameter ● Operation system: Android 5.1.1 ● CPU: RK3128 Quad-Core ARM Cortex A7 @1.2Ghz ● Battery: 2500mA, rechargeable polymer lithium battery ● Extension memory card: 32G Micro SD (TF) card supported ● Storage capacity: 16GB ● LCD: 5.0 inch ● LCD resolution: 800*600 ● Touch screen: capacitive touch screen ● Wi-Fi: supported ● Working temperature: -20℃ ~ 55℃（14℉ ~ 131℉ ） ● Storage temperature: -20℃ ~ 70℃（-4℉ ~ 158℉ ） ● Weight: about 700g ● Dimension: 140mm*89*mm*18mm (5.51in*3.5in*0.7in) Package List Main Unit+Main Cable+Charger+Packing Box+KIA-20+OBD II-16 Connector+HONDA-3+HYUNDAI-10+P001 Programmer Unit+C001/C002 Circuit Board+W001+Configuration List/Certificate/Quick Start Guide Fold Weight (Kg) = 10 Kg |
It not only provides customers with professional key programming, but also the most needed special functions for workshop.
X-100 PAD is a tablet with the latest technologies to perform key programming, mileage adjustment, oil service light reset, timing belt service light reset, tire pressure warning light reset, EPB reset, throttle body reset, DPF reset, battery reset, steering angle calibration and OBD-II engine diagnosis.
Communication is more stable than the old version.
هي ليست فقط من افضل الاجهزة ببرمجة المفاتيح الاحترافيه لا بل انها قادره على عمل قسم كبير من البرمجه الاحترافيه التي يحتاجها الميكانيكي في ورشته لضبط امور عده في السيارة مثل ضبط غيار الزيت و التايمنج بيلت و برمجة عداد السيارة و ضبط ضغط العجلات و ترسيت البريك و ضبط دواسة البترول و ضبط دبة البيئه و ضبط البطاريه و الستيرنج الكهربائي و يقوم بفحص شامل للسيارة
Language: English, French, German, Norwegian, Russian, Persian, Arabic, Polish, Portuguese，Hindi
الغات التي يدعمها: الانجليزيه و الفرنسيه و الالمانيه و النرويجيه و الروسيه و الفارسيه و العربيه و البولنديه و البرتغاليه و الهنديه
Notice: X-100 Pad is free update
This pad does not support indian local cars
It puts the VCI box into the tablet. The two-in-one, the communication is more stable.
ملاحضه: هذا الجهاز تحديثه مجاني لا يدع السيارات الهنديه Functions:
Key programming
Oil Reset/Engine oil light reset
Odometer Adjustment
Tire Pressure Warning Light Reset (Manual Operation)
Timing belt light reset (Manual Operation)
EPB Electrical Parking Brake Adaptation
TPS Throttle Body Adaptation
Steering Angle Calibration
Battery Reset
PIN Code Reading
Hexadcimaleditor(Win Hex)
OBDII Diagnosis
Support the latest vehicles with CAN BUS and UDS protocol
Update Via WIFI(always equip your device with the latest software)
More…
الوضايف التي يقوم بها الجهاز برمجة المفاتيح ضبط غيار الزيت و اطفاء نور الزيت ضبط عداد السيارات ضبط ضغط العجلات ضبط التايمنجبيلت ضبط البريك الكهربائي ضبط دواسة البترول ضبط الستيرنج الكهربائي ضبط البطاريه يقراء البين كود يتعامل و يعدل الهيكسا ديسيمال يفحص جميع اجزاء السيارات و يشخص اعطالها يدعم السيارات الحديثه بالكان بص و اليودي اس بروتوكول تحديث بواسطة الواي فاي
Key Programming Features:
1.New keysprogramming
2. PIN Code reading with EEPROM
3.Hexadcimal editor(Win Hex)
4.Reads keys from immobilizer's memory
5.New immobilizerprogramming
6.Vehicle Identification Number programming
7.Reset ECM & reset immobilizer
8.New remote controller programming
9.With full and strong database for the most important vehicle makes
مميزات برمجة المفاتيح في هذا الجهاز
برمجة المفاتيح الجديده
قراءة البينكود من الايبروم
تعديل و تعامل مع الهيكساديسيمال
يقراء المفاتيح من ذاكرة الايموبلايزير
يبرمج على رقم الشصي
يبرمج العقل الرئيسي للسيارات و يبرمج المفاتيح
يبرمج ريموت السيارات
يحتوي على معلومات والكثير من السيارات ف الداتا بيس
Oil Reset Functions Feature:
Innovative one-click oil reset for vw, for audi,for b mw, mercedes seat, skoda, volvo, etc.
Support engine oil, spark plugs, front brake pads, back brake pads, air conditioner, brake liquid, coolant liquid,
vehicle checking , etc. resetting for bmw.
and the supported bmw models are F01/F02/F03/F04/F07/F10/F11/F12/F13/F18/F20/F30, etc.
Support Mercedes Benz new C class, E class models and for mercedes benz VITO/VIANO/SPINTER.
Support the lifespan percentage resetting of engine oil for B uick, C adillac etc.
Support P orsche cayenne, panamera till 2012
Support maintenance light reset for volvo, l and rover.
Oil service light resetcoverage
America: B uick, C adillac, C hevrolet, Chrysler, C hevrolet/ G MC, F ord/Mercury/Lincoln, Oldsmobile, P ontiac, Saturn, for G M, J eep and more…
European: VW, for Audi, P orsche, for B MW, for Mercedes-Benz, Volvo, L and Rover, Peugeot, Citroen, SAAB, Seat, Skoda and more…
Asia:Toyota/Lexus, N issan/Infiniti, for Honda, A cura, Isuzu, Chery, F ord Transit, Roewe, MG and more…
 Odometer Adjustment:
VW /for AUDI/SEAT/SKODA, B UICK, C ADILLAC, C HEVROLET, CHRYSLER, F ORD, MAZDA, N ISSAN,
SUZUKI, KIA, HYUNDAI, JAGUAR, L AND ROVER, P ORSCHE and more…
EPB electrical parking brake adaptation
vw ( R36, CC, Magotan etc.), for audi ( A4L, A6L, Q5 etc.), seat, skoda and more…
Tire pressure warning light reset (manual operation)
for mercedes-benz, for g m, vw, for bmw, toyota and more…
Timing belt light reset (manual operation)
Exhaust gas treatment (DPF) features
EEPROM adapter features:
1. PIN Code Reading
2. ECU Initializing
3. Chip Programming
Vehicle Coverage:
Asia: Toyota, Lexus, for Honda, A cura, Mazda, for N issan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, etc
Europe: for Audi, VW, Skoda, Seat, for P orsche, Opel, Citroen, Peugeot, Jaguar, for L and Rover, Lincoln, Renault, etc
America: for G M, C adillac, B uick, Chrysler, F ord etc
China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, BYD , JAC, etc.
Package list:
1pc x X-100 Tablet
1pc x OBDII 16Pin Adapter
1pc x Honda-3
1pc x Kia-20
1pc x Kia/Hyundai-10
1pc x Power Adapter
1pc x EEPROM Adapter
1pc x EEPROM IC Board
1pc x EEPROM Package Box
1pc x Test Main Cable
1pc x Mirco USB Cable
1pc x User's Manual
| جهاز السي ان 900 هو جهاز رائع جدا لنسخ شيبات مفاتيح السيارات و يقراءها و ايضا يفك الشيبات المقفوله و يحسب البين كود لاكثر من 60 نوع من السيارات و يبرمج 71 نوع من المفاتيح الذكيه Smart CN900 Mini Transponder Key Programmer
CN900 Mini is the replacement of CN900 Key Programmer that can easily hand-held, which can easily update online as CN900.
Language: English, Arabic, Russian, Spanish, Japanese, Portuguese, Turkish
Smart CN900 Mini transponder Programmer:
CN900 Mini Highlights:
RFID identifly 125KHZ 134.2KHZ 13MHZ
RF data reception 27-900MHZ
RF radio frequency identification,support all kinds of remote controls
RF Data transmission, supports all kinds of remote control simulation test
Various types of vehicle anti-the fault detection, matching detection
Portable Super long standby
Support four kinds of frequency 850/900/1800/1900MHZ
GSM/GPRS SIM
USB2.0
Bluetooth4.0
As for the products improvements, specifications are subject to change
CN900 Mini can use CN5 Chip to copy Toyota G Chip and 4D Chip. (It requires token to copy Toyota G Chip, CN900 Mini has 12 tokens as default for G Chip, when you use it up, you can contact us to charge another 12 tokens for free. And for the next times will need to pay usd30 to get more tokens.)
CN900 Mini V5.18 Update:
TJECU MINI900 TOYOKEY OBD is newly confirmed to be able to write Toyota Smart card via OBD, it supports 3370-5290-A433-F433 types.
(Update notice: TJECU next update plan is to initialize Toyota 0020 type of 8A smart card with all key lost)
CN900 Mini will Update to Copy 48 chip:
1. Can directly copy 4C and other chips like Toyota 4d67.
2. Support copy 4D chips.
3. Can recognize locked ID48 and can unlock ID48.
4. Support copy 46 chips.
5. Support 72G chip.
CN900 MINI Firmware Update:
1. Download CN900 Update Tool here
2. Delete previous update file
3. Open the newest updater software
4. Click on update button
5. The main module of firmware is updating. Wait upgrade procedure conpleteCN900 MINI Main Features
Function 1:
1) Read out the chip code for 11 12 13 33 T5 40 41 42 44 45 46 48 4C 4D 8C and 8E chips. With the detail format for ID 48 and 4D Chips.
2) New identify functions for Toyota "G " chip key (year: 2010) (Chip: 4D-72).
And it will show if the key is the main key or the vice key for Toyota, and later will add new identify function for the Chinese Car.
Function 2:
It can identify Toyota smart key, and read out the data.
Function 3:
It supports on copying the chips (11 12 13 33 T5 41 and 42) and parts of 44 and 45.
Using "FREE " dedicated chips can copy none battery 4C and 4D chips directly.(Remark :cn1(4C),cn2(4D) is the name of special chip)
Function 4:
Connecting with Chinese PC software, it can save the read key code data unlimited.
Function 5:
Support on the chip programming: with the inner function of HITAGETI, it can write ID 46 Renault Crypto chips.
Function 6:
Without removing the ECU (Benz W140), it can start the chip.
Function 7:
It can unlock the 48 chips except the crypto lock 48 chips.
Function 8:
Support on the pin code calculating for Hyundai and Kia (before 07 year), by using the Last 6 Codes of VIN Number.
Function 9:
Support on starting the key and calculating the pin code for more than 60 kinds of cars.
Support on programming all kind of Fiat key, such as (11, 13 and 33), These 3 kinds of 48 chips anti-theft way.
Function 10:
It Upgrade to identify HONDA_46 CRV_46/CIVIC_46/ Mitsubishi 46
Ordinary 60 can be programmed to be 66/67/68/71/74
Function 11:
It Upgrade to copy CN1 (4C), CN2 (4D) chip .And size is 6mmX12mmX4mm
Support on the software update, such as adding new function for copying the induction card for Electronic Gate.
Function 12:
Can copy all ID46 chip:
BMW 46 chip,ACURA 46 chips,Honda CRV FIT(NEW) Accord(2008) Civic 46 chips;Mazda haima 46 chips;Mitsubishi 46 chips;Buick GMC CRUZE 46 chip. New Chery tiggo A3 46 chips; Nissan TIIDA TENNA LIVINA Sylphy Nissan QASHQAI Q35 46 chip. Brilliance 46 chip.Peugeot/Citroen 307 206 -46 chips;Triumph Senna 406 (2001year);Picasso 46 chip.Suzuki swifts SX4 46 chip.Land Rover FREELANDER 46 chip. Geely dedicated 46 chip.
Function 13:
can copy 4D chip
Function 14:
Support 72G Chip copy.
Different Between Smart CN900 MINI and CN900:
1. CN900 mini inherited most of CN900's feature but mini one make car key copy easier without connecting with 4D, 46, G Decoder Cloner Box.
2. Mini CN900 comes with built-in battery, do not need to attach to the power adapter.
3. CN900 Mini support WiFi, Bluetooth and internet connection. The big size one do not support.
4. CN900/ND900 Mini replaces big CN900.
Smart CN900 Mini Customer Feedbacks:
- Its confirmed cn900mini and toyokey can add 71 smart key
I tried it today adding a smart key to a 2007 Toyota fitz with 71 chip and it worked like a charm
- CN900 Mini 1.34.2.19 is confirmed to read diamond keys with EML 10030A chip.
- Tested it on a Chevrolet Aveo 2012 - worked in seconds, no decoding. But that was to be expected. They use the easiest transponders.
--I bought the cn900 mini and appropriate ID46 chips. (5.5 € /piece)
Cloning worked for Astra H and Peugeot 307
-I still using version 1.13 and cloned few Opel 46 without hassle.
-Can clone ALL ID46 chips, i.e clone ID46 for OPEL(Vauxhall)/Peugeot/Citroen. Never failed on id46 to someone.
- I have copied about fifty ID46 keys with the CN900 mini successfully. Two times it failed (1x Renault Clio, 1x Opel Movano), because I can't sniff data from ignition.
T5, 4C was never a problem. Sometimes it was not able to decode 4D. It starts decoding till 99 and then it stops.
I use 4C/4D carbon and different CN chips from Ali. I don't know if original or not. They works all for me fine.
Firmware is 1.13 I don't see a reason to upgrade.
Add Toyota 71,74,8A Smart key ADD and DELETE via OBDII
Add Toyota 71,74,8A Smart key all keys lost programming
Add Toyota 8A smart key RENEW
Add 8E Bank Data read, CS crypto Programming, CS Unlock
Add Partial 48 Decoding and Copy. Shoddy 48 identification
Add HITAG VAG identification
I tried renewing 8A fob with no luckCN900 MINI Reviews:1). it reads and copies all 4C easy, 100% works.
2). Mine comes with 4D -decoder, it failed decoding most of the first time, but if you keep trying a couple of times, it will work eventually. the decoding time is about 2~3 minutes.
3). it does NOT copy 46, and will never do without adding external box- 46 Cloner Box, e.g extra money.
4). CN1 and CN2 can be re-used over and over again, big plus when doing 4C eeprom production.
5). its size is same as carbon chip,
you can put them into remote key. For some jobs I’d rather copying than programming. Minor extra cost but safer and quicker, move on to next job quicker.
6). It allows you to edit 4C / ID13 EEPROM data on screen, it helps me doing a lot of hard jobs like Toyota 4C , Honda red key systems..
7). it reads Toyota Smart key data.
8). Touch screen and fast boot-up time in 10 seconds.
9)Meant to beat out the Handy Baby from the market, but as far I see without success. This one is the handheld version of the CN900, as the developers said with all of its abilities. Ok, this info comes from my dealer: the mini knows only 80% of the HB's work tested on real cars. If you have handy baby you don't need the cn. Price is around $190 with free shiping.
1set x CN900 Mini | Xtool X100 PRO Auto Key Programmer X100+ Updated Versionجهاز برمجة المفاتيح المطور اكس 100
1. Update Online (The Old Version X100+ Can Still Update Online too, Just Download Update Tool from Official Website, then Use Serial Number and Register Password to Log in and Update)بالامكان تحديث هذا الجهاز بتحميل برنامج التحديث من موقع الشركه الصانعه في الرابط فوقثم تستخدم رقم الجهاز و تدخل باسم مستخدم و باسوورد انت كمستخدم تختاره و تقوم بعملية التحديث 2. Supported Various Vehicles Models: السيارات التي يدعمها هذا الجهاز هي Asia: Toyota, Lexus, Honda, Acura, Mazda, Nissan, Infiniti, Mitsubishi, Subaru, Suzuki, Kia, Hyundai, Daewoo, SSANGYONG, Proton, QNLotus etc Europe: Audi, VW, Skoda, Seat, Porsche, Opel, Citroen, Peugeot, Jaguar, Landrover, Lincoln, Renault etc America: GM, Cadillac, Buick, Chrysler, Ford etc China: Great Wall, Chery, Brilliance-auto, Geely, LIFAN, HAFEI, CHANGAN, LANDWIND, BYD, Changan, Changfeng, Changhe, BYD, HNMazda, Huapu, JAC, LiuZhou, Lufeng, Roewe, SQYL, ZZMazda, ZZNissan etc Support Add Toyota G Chip Via OBD و يدعم التويوتا ال جي شيب Specifications: المواصفات
Features: الوظائف التي يقوم بها الجهاز1.New Keys Programming برمجة المفاتيح الجديده 2.Reads Keys from Immobilizer's Memory يقراء المفاتيح من الايموبلايزير و ذاكرتها 3.New Immobilizer Programming يبرمج انضمة الايموبلايزير الجديده 4.New ECU Programming يبرمج وحدة ال اي سي يو الجديده 5.New Mechanical Key Number Programming يبرمج المفاتيح الميكانيكيه الجديده 6.Vehicle Identification Number Programming يبرمج رقم الشاصي و يطابقها 7.Reset ECM & Reset Immobilizer يضبط و يعمل ريسيت لل اي سي ام و لنظام المفاتيح 8.Easy to operate by the guided menu programming سهل التشغيل و الوصول 9.New remote controller programming يبرمج ريموت السيارات الجديده و ينسخها 10.With full and strong database for the most important vehicle makes يحتوي على برامج المفاتيح لمجموعه كبيرة من السيارات 11.Upgradeable via web-based download يمكن تحديثه بواسطة النتX100 Pro Key Programmer Packing List: ماذا ياتي بداخل الجهاز1. X100 Pro Main Unit الجهاز الرئيسي
2. ObdII-16 Connector وصلة ال 16 بين التي توصل بالسيارة
3. Honda-3 Connector وصلة الهوندا
4. Hyundai/Kia-10 Connector وصلة الهونداي و الكيا
5. Kia-20 Connector وصلة الكيا ال 20
6. Main Cable الكيبيل الرئيسي
7. TF Card التي اف كارد
8. TF Card Reader قارئ ال تي اف كارد | جه
OBDSTAR ODO Master X300M+ for Odometer Adjustment/OBDII and Oil Reset Functions
OBDSTAR ODO Master is a new Android based 5'' tablet, specialized for cluster calibration. It inherits the latest cluster calibration technology from OBDSTAR with various advantages of easy-to-use, wide model coverage, fast operation and durable features which can meet the actual needs of different users such as automobile repair plants and fast repair shops.
OBDSTAR ODO Master Highlights:
1. The update cycle is short and fast (updated every 2-3 days)
2. Free Update Online for One Year, after one year it will cost $300 per year. Dealer Code: 0086A002
3. Strong competitiveness and industry advantage
4. Some models can support 18/19 years of car (such as GM/Chrysler)
5. Add a new help function as shown below: (Applicable to some models, R & D information is being update)
6. There are now three configurations of ODO Master available:
ODO Master Full Version covers all vehicle list;
ODO Master Standard Version $599 Only removes luxury cars BENTLEY, FERRARI, BMWH and MASERATI;
ODO Master Basic Version $449 Only removes luxury cars BENTLEY, FERRARI, BMWH and MASERATI, and GREATWALL GEELY, MG & PROTON.
OBDSTAR ODO Master Functions List:
1. Via OBDII
2. Data Backup
3. Data Recovery
4. Read Odometer
5. Write Odometer
6. Odometer Reset
7. Oil Service Reset
8. Read & Clear DTC
9. One-Click Upgrade
10. Instruction Documents
11. Wide Vehicle Coverage
OBDSTAR ODO Master Support Car Software list:
Europe:
ALFA ROMEO,AUDI,BENTLEY,BENZ,BMW/Mini,CITROEN,PEUGEOT,FERRARI,FLAT,JAGUAR,LANCIA,LAND ROVER,MASERATI,OPEL,PORSCHE,RENAULT,VOLVO,IVECO,SKODA,SEAT,VW
Japan:
ISUZU,MAZDA,MITSUBISHI,INFINITE,NISSAN,SUBARU,TOYOTA
Korea:
HYUNDAI,KIA,SANGYONG
America:
FORD/LINCOLN,CHRYSLER,GM
China:
GEELY,BESTURN,CHANGAN,ROEWE MG,ROEWE
OBDSTAR ODO Master New Car Models Coveraged Comparison with OBDSTAR X300M:
OBDSTAR ODO Master Specifications:
1pc x OBDSTAR ODO Master Main Unit
1pc x Charger
1pc x Multi-functional Jumper
1pc x Configuration List
1pc x Packing box
| |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | غير محدد | غير محدد | غير محدد | غير محدد | غير محدد | غير محدد | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | غير محدد | غير محدد | غير محدد | غير محدد | غير محدد | غير محدد | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Additional information | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Related products
14%
Autel MaxiIM IM508 Advanced IMMO & Key Programming Tool جهاز اوتيل ل برمجة المفاتيح
د.إ4,750.00 In Stock
18%
16%
جهاز الهاندي بيبي من افخم و اقدر الاجهزة في برمجة المفاتيح بالعالم كامله
يعمل فقط مع الشيبات من هاندي بيبي الكينج شيب او او ال 46 او ال 4سي او 4 دي او التي 5
يتم تحديها من الموقع الرسمي للشركه الصانعه تاتي بالالوان الاحمر و الازرق و الرمادي و نبيع حسب الون المتوفر - نفس الوضيفه فقط الون مختلف تاتي مع الجي فنكشنو يمكنك شراء الجي فنكشن من عندنا ايضا يمكنك نسخ ال 96 بيت و 48 نسخ اذا عندك الجي ام دي المساعد يكون مجاني هذا الوضيفهاو تدفع فقط 20 دولار لكل مره اما اذا لم يكن عندك المساعد لازم تدفع 129 دولار لتحصل على هذه الوضيفه و بعد شراءها يمكنك ان تدفع فقط 20 دولار لكل مره يمكنك شراء الجي فنكشن ايضا من موقعنا
Handy Baby Hand-held Car Key Copy Key Programmer for 4D/46/48 Chips
Note:
1. Latest Version: V9.0.2
2. Language: English, Chinese, Spanish, Russian, French, Portuguese, Turkish, newly add Arabic language. Different language price will be a little different, please contact our customer service.
3. This Device can't work together with CN1 or CN2 Chip, need to work with specially designed Handy Baby Chip, please choose Handy Baby JMD King Chip for 46+4C+4D+T5+G (4D-80bit)
4. Update Free Online on Official Website
5. Handy Baby has red, blue and grey color which we will send randomly.
Attention: Handy Baby Key Programmer has G Function now, if you want to get this authorization, please click
Please provide your serial number with pictures after you make order, then we can open this authorization for you.
JMD Handy Baby 96 bit 48 online copy!!
if you have JMD assistant, you can have this function for free, while one time coding will cost usd20.
if you don't have JMD assistant, need to pay usd129 to get this function, and after having this function, it will cost usd20 for one time coding too.
Check Token for Handy Baby and JMD Assistant 96Bit ID48 Chip Copy Function
HandyBaby 9.0.2 Update Content:
1. Optimize BYD 46 chip one-click write key data, increase password-free matching
2. Chinese machine adds 8C copy, only supports blank TK5561A (original 8C) copy
3. KingChip can be directly used to convert 46 chip acquisition
4. JMD Assistant Audi copy, support the use of vice brand smelecom(not JMD could compatible need asking agent which one brand-smelecom) Audi board copy
5. Added part of the 7935 model generation
6. Add a small part of the 40/41/45 chip decoding (subject to the actual identification and decoding)
JMD Assistant latest version 9.0.0
Download JMD "client software"for update.
Handy baby 9.0.1 Version Update:
4D83 generate
Cadillac chip 48 generate
Modify 72g decoding ID 37 and 57 could decoding now!
Handy Baby v9.0.0 Update:
1.Show Epica(4D60) master key match code after identification.
2.Increase unlock toyota smart key function.
3.Increase copy Honda 47 by king chipII.
4.Increase generate blank 47(just support king chipII)
5.Increase read/write hitag AES/PRO.
6.Distinguish 8A master key,support write or lock P4/P5/P6/P8/P10.
7.Increase unlock hitag vag(just support 754C and 754J of handy baby)
8.Decode 48 chip online, except MQB system.
Handy Baby V8.3.0 Update:
Handy Baby V7.0 Newly Released:
New Added Function
1, Able to simulate the 4D chip including 4D60 / 61/62/63/64/65/67/68 / 6A / 6B / 71/60 + / 63 + / 72G;
2, Able to identify chip species;
3, Able to generate GM 46;
4, Fix the known bug;
5, Able to process the immo data:
Great Wall transportation 46 immo, Geely transportation 46 immo, Chery transportation 46 immo, Haima transportation 46 immo,
Chongqing Jicheng 4D immo, Delphi 48 immo, Siemens 46 immo, Lianchuang 46 immo, Alto 46, Roewe, MG, and other security data processing
Key Copy Programmer Recognize and Copy:
Handy Baby V7.0 Newly Released:
New Added Function
1, Able to simulate the 4D chip including 4D60 / 61/62/63/64/65/67/68 / 6A / 6B / 71/60 + / 63 + / 72G;
2, Able to identify chip species;
3, Able to generate GM 46;
4, Fix the known bug;
5, Able to process the immo data:
Great Wall transportation 46 immo, Geely transportation 46 immo, Chery transportation 46 immo, Haima transportation 46 immo,
Chongqing Jicheng 4D immo, Delphi 48 immo, Siemens 46 immo, Lianchuang 46 immo, Alto 46, Roewe, MG, and other security data processing
Recognize: Recognize chip 13, 40/41/42/44/45, 4C/46/48, 4D61/62/63/67/68/68﹢/71. Able to tell if 48 chip is from original or deputy factory.
Copy: Copy 46, 4D and a partial of original 48 I.E Buick Excelle, you have to use special GMT46/4D Chips, ID48 chips which can change ID.
Operation steps:
Turn on: long press the "On" button.
Turn off: long press the "On / off" button or "On / off" and "OK" button
Steps to operate: follow the tips on the screen, put the original key into the coil, press "OK" to recognize.
Take chip 46, 4D and 48 for example.
Steps to copy 46:
1. Press "OK" to decode
2. Make antenna close to coil
3. Insert and turn the key (collection)
4. Put original key into coil to decode
5. Put new key into coil to copy
Steps to copy 4D:
Press "OK" to decode, then put new key into coil to copy.
Steps to copy 48:
Press "OK" to decode, then put new key into coil to copy.
Handy Baby Key Copy Programmer Initialize:
Please use with caution: only available for JMD46 / 4D and revisable UID48 chip. The data won’t be restored after the chip erased.
Enter program, select the chip type, press "OK" to restore to factory settings.
Handy Baby Key Copy Programmer Test Frequency:
Steps to test the key remote frequency: Enter program, make key close to the surface of left button, meanwhile press remote button, then the frequency will display.
Handy Baby Key Copy Programmer Data read and write:
1) Read and write 46 chip
1. Please select correct chip mode and password in order to read & write chip correctly. The device default chip mode and password is 46 chip blank.
2. Select chip mode: move mouse cursor to "Mode", I.E "Plaintext mode", press "OK", the fonts turn black from white to indicate the selection mode, press "Up" and "Down" to select the Plaintext mode or password mode.
3. Enter password: move cursor to the password box under the mode, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password.
4. After finish press "OK"to exit, then move cursor to "Read all" to read out data.
5. Read all: read out all data for 46 chip and display the status of locked or unlocked.
6. Write: write the corresponding data; make sure 46 unlocked before writing data.
7. Enter data: the way to enter data is as the same as to enter password.
2) Read and write 48 chip
1. Read: read out 48 chip UID, user 1 and user 2 data, and display 48 chip type as well as the status of locked or unlocked.
2. Write: write the corresponding area data; make sure 48 unlocked before writing data.
3. Enter data: move cursor to the data input box, press "OK" to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" button to exit, move cursor to "Write" to write data.
4. Unlock: if the chip is locked, then it needs to be unlocked before writing into data.
5. Steps: when the chip is read out locked, please enter PIN code which is the code of 48 chip, move cursor to "Unlock", press "OK" to unlock.
3) Read and write 4D chip
1. Read: read out 4D chip password, recognition and ID data, also display their status of unlocked or locked.
2. Enter data: move cursor to the data input box, press "OK" button to proceed, press "Up" and "Down" to select the data (0`F), press "Left" and "Right" to transfer password. After finish press "OK" to exit, move cursor to "Write" to write data.
3. Write: write the corresponding area data; make sure 4D unlocked before writing data.
4. Lock: lock the corresponding area, note: it is unable to unlock after locked.
5. Car ignition check: enter the verification code, then it will return corresponding signature.
4. Other chips
Able to recognize chip 13、40/41/42/44/45、4C/46/48、4D61/62/63/67/68/68﹢/71
Able to use T5575、em4305 and the compatible cards to copy 13 chip.
5. Generate chip
Chip 67 and 68: need the unlocked 4D chip to generate.
Specialized 48 chip: able to generate chip for only Seattle TA, VW TA, Skoda TA, Audi TA, SEAT TP, VW TP, Skoda TP, Audi TP and Jetta
??Handy Baby Update Steps:
Handy Baby Software Display:
Handy Baby Software Display:
PCB Board Display:
Handy Baby Customers Feedback(Test Report)Part 1: WORKS
Motorbike BMW K1200LT with 46 chip.
Suzuki Swift 2001
BMW E90 2006
Renault Master 2015
Fiat Punto 2003
Ford Fiesta 2007
Ford Fusion 2006
Ford Focus 2009
Audi A6 2002
Daewoo Nubira 2003
Honda Civic 2000
fiat palio 2002-2015
gm onix 2014
fiat uno way 2015
honda civic 2008
vw gol g4/g5
vw golf g4
ford fiesta 14
renault sandero 13
citroen c4 longue
c3 dst
renault clio 2006
corolla 12
peugout 3008
nissan frontier 14
honda hornetSuzuki Swift 2001
BMW E90 2006
Renault Master 2015
Fiat Punto 2003
Ford Fiesta 2007
Ford Fusion 2006
Ford Focus 2009
Audi A6 2002
Daewoo Nubira 2003
Honda Civic 2000fiat palio 2002-2015
gm onix 2014
fiat uno way 2015
honda civic 2008
vw gol g4/g5
vw golf g4
ford fiesta 14
renault sandero 13
citroen c4 longue
c3 dst
renault clio 2006
corolla 12
peugout 3008
nissan frontier 14
honda hornet
2018 peugeot boxer copy key works ok
Handy baby with 9.0.0 update will copy TEMIC 8C chips on TK5561A chips.
best tool for me for transponder copy
it do almost all psa cars when others fail
very good support from developer clones fast and cheap transponders what more can i say .
remote tester can work, i thought i had to hold it to the top of the sntennai, but its held to the bottom left of the HB to test freq.
Ford/Mazda and KIA/Hyundai 6e (4d 80 bit) chip cloning For now, i use Handy Baby to make this. Very good cloner.
The key maker save me one H1 2002, tango, vvdi2, EFFi no one recognise this 4D dump.
Generated with Handy make and VVDI recognised.
While Keydiy KD-X2 was just released in November 2018 year.
Just tried decode id83 focus 80bits with Keydiy KD-X2. Failed after 99%. Use handy Baby success in 10s.
Id70 80bit Kia Ok.
Used Keydiy KD-X2 and failed to clone a BMW 80 bit chip. Then, I have done this with handybaby.Part 2: DONT WORK
Audi TT 2004
Audi A4 Cabriolet 2007
Renault Clio II 2005
Renault Kangoo II 2010
Peugeot 508 2013*
VW Passat 2009
Kia Sportage 2008*
mercedes sprinter 2003* = Starts to decode but always stops with error message
Audi TT 2004
Audi A4 Cabriolet 2007
Renault Clio II 2005
Renault Kangoo II 2010
Peugeot 508 2013*
VW Passat 2009
Kia Sportage 2008*
* = Starts to decode but always stops with error message
merceds sprinter 2003
only 2 VAG cloning is not working both old 2000 or 2001. The data collecting isn't working
Handy Baby Customers Reviews:
A must have! At the moment it is the best handheld cloner, what you can get. With the JMD key expansion it can save you with ease when you have to deal with VWs - even in AKL situations. It is not a wonder weapon, in practice it needs time for calculations (some times 45 mins), but in the meantime you can cut the key, aso. Never tried with G-chips, so I can just tell ya that it is said to be working. Has built-in batteries, and you can always charge it from your car - ideal tool to take with you. The special transponders are cheap enough to save you a lot of money compared to the RW4, and the main unit costs only $420, the JMD Key box around $250, and the G-chip authorization (if not included) $80, always with free shiping.Handy Baby Package including:
1pc x Handy Baby Hand-held Car Key Copy Key Programmer for 4D/46/48 Chips
12%
OBDSTAR Key Master 5 All-Purpose Immobilizer Programming Device
د.إ3,250.00In Stock
Copyright 2023 © Zebartech. All right reserved. Powered by Al Muhandes.
Download App on Mobile
المراجعات
لا توجد مراجعات بعد.
