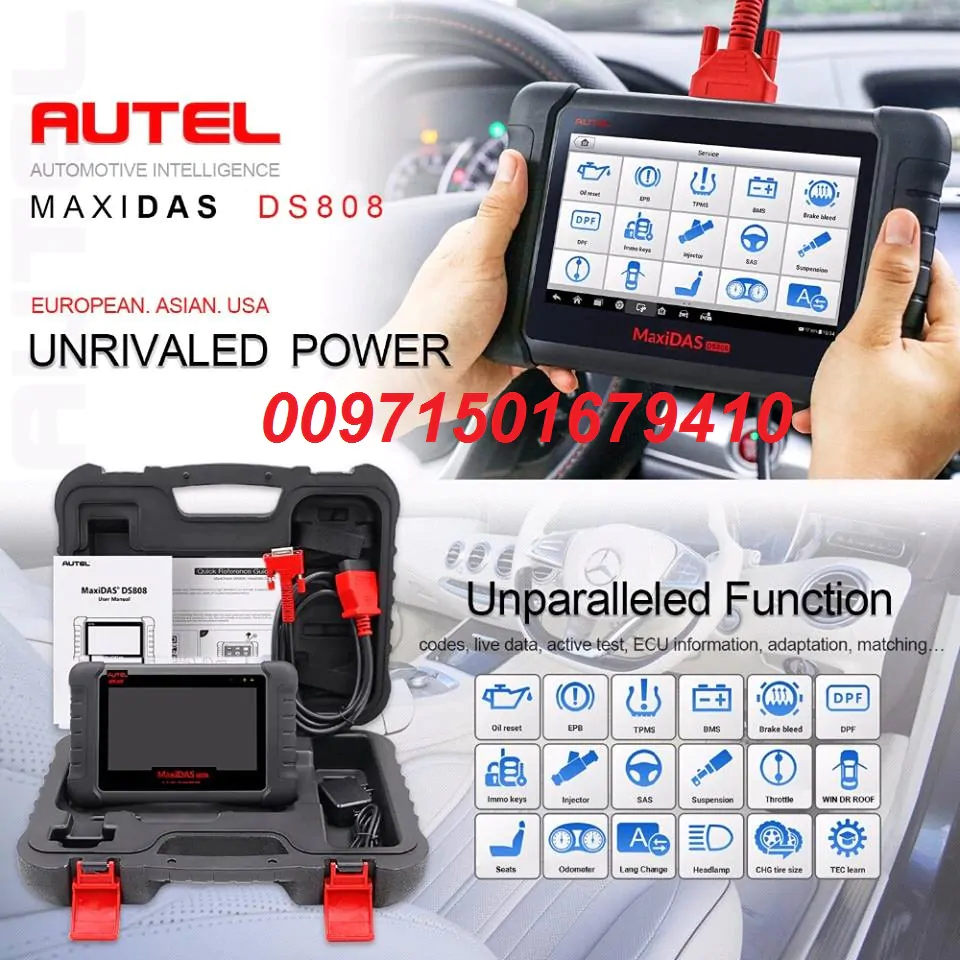

MaxiDAS DS808 جهاز ماكسيداس

In Stock

د.إ2,900.00

Based on the Android operating system, MaxiDAS DS808 is featured with an extensive coverage of OE-level diagnostics. Installed with a fast quad-core processor, DS808 offers maximum convenience and efficiency for your diagnosis and analysis. The intuitive user interface makes using the device effortless through a 7-inch LCD touchscreen that displays at 1024 x 600 quality.

In Stock
Add to Wishlist
Add to Wishlist

Did you like this product? Add to favorites now and follow the product.

Add to Wishlist
Add to Wishlist
إذا كانت لديك استفسارات، فلا تترد بالتواصل معنا

+971 501 679 410 راسلنا عبر واتساب

مُماثل لما تطلبه

نرسل لك تمامًا ما تطلبه

أفضل الأسعار

احصل على الأدوات اللازمة بأفضل سعر

التواصل متاح بعد الشراء وقبله

يمكننا مساعدتك بقدر المستطاع

توصيل لكل المناطق

يصلك لأي مكان في العالم

Category:

الوصف

Features

Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes

Exceptional OE-Level system coverage for all electronic systems

Complete capabilities for codes, live data, active test, ECU information, adaptation, matching, etc.

Smart AutoVIN technology for identifying vehicles easily

Automatic system and software updates with real-time push message notifications via Wi-Fi

Instant remote control tech support anytime, anywhere

Cloud-based MaxiFix online community provides a vast database of diagnostic and repair tips and proven filed fixes

Interactive Data Logging sessions enable direct contact with Autel Technical Support for first-hand troubleshooting of diagnostic bugs and errors

One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized

Convenient data management system for managing internal program applications and reviewing data

Specifications

Recommended Use Indoor
Operating System Android™ 4.4.4
Processor Cortex-A9 processor (1.5 GHz)
Memory 32GB
Display 7-inch LCD capacitive touchscreen with 1024×600 resolution
Connectivity • Mini USB 2.0 • USB 2.0 • Wi-Fi • Micro SD card (supports up to 32GB)
Sensors Ambient light sensor for brightness auto changing
Audio Input/Output • Input: N/A • Output: buzzer
Power and Battery • 3.7 V/3200 mAh lithium-polymer battery • Charges via 5 VDC power supply
Tested Battery Life Around 4.5 hours of continuous use
Battery Charging Input 5 V/1.5 A
Power Consumption 500 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
Operating Temp. -10 to 60°C(14 to 140°F)
Storage Temp. -20 to 70°C (-4 to 158°F)
Operating Humidity 5% – 95% non-condensing
Dimensions (W x H x D) 237.8 mm (9.4”) x 148.6 mm (5.9”) x 35.5 mm (1.4”)
Net Weight 788 g (2.42 lb.)
Supported Automotive Protocols ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, ISO11898(Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6



Accessories

DS808 Display Tablet
Power Adapter
User Manual
Quick Reference Guide
Main cable
Mini USB Cable
MaxiDAS DS808 KIT User Manual V2.0 EN190613.pdf
MaxiDAS DS808 User Manual V2.0 EN190613.pdf
